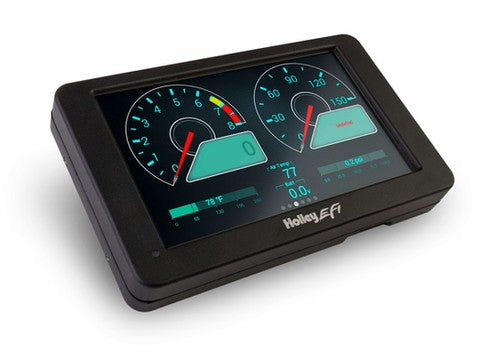

Holley 7" EFI Stand Alone Digital Dash Kit
Have you been looking for a dash solution for your vehicle, but just cannot find anything you like or that is cost effective? No need to look any further as Holley has created a full color touch screen dash that includes sensors for monitoring basic engine parameters as well as a GPS speedometer all in a cost effective package! Holley's stand-alone digital dash has great features such as; a weather resistant aluminum housing for durability, multiple gauge and indicator type selections, customizable screen and gauge layouts and a virtual switch panel just to name a few. With the integrated 3 axis accelerometer and data-logging, the dash is ideal for anything from a JR dragster to Sportsman racing. It is also equally at home in a daily driver, or a show winning roadster.
- Compact, customizable dash for use in a variety of applications
- 7” low glare, high brightness, high contrast, full color touch screen for easy viewing even in full sun
- 800x480 resolution with auto brightness and dimming
- Operating voltage min 8V - 20V
- Includes USB GPS for Speedometer display with a magnetic base for a quick and clean install
- Weather resistant aluminum housing with flexible mounting options
- Completely customizable layouts, with multiple default configurations to get you running in no time!
- Multiple gauge & indicator types with limitless customization options
- Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)
- Virtual Switch Panel (replaces the need for physical switches) *2 switched ground outputs to be added to trigger an external relay*
- Retains the same gauge customization flexibility as the EFI dash, but now allows use with any vehicle
- Powerful data log software provides in-depth analysis (10 samples/sec) of all inputs and outputs, including the integrated 3 axis accelerometer and USB GPS-no need for separate data logging boxes
- Built in Data logging playback allows you to view your last run on the fly
- A variety of additional sensors are available for use with the dash, including fuel pressure, nitrous pressure, boost, with more to come!
- Pair with a Holley EFI LED Light Bar (PN 553-107) for a truly customizable solution!
- User definable warnings for any input
- Configurable progressive shift lights and light bar
- Expandable internal storage on micro SD card
- Free Software and Firmware upgrades, providing a future proof display solution
- Included parts: Standalone digital dash kit with I/O adapter, USB memory stick, terminated vehicle harness, oil pressure sensor, CTS sensor, MAT sensor, USB GPS
