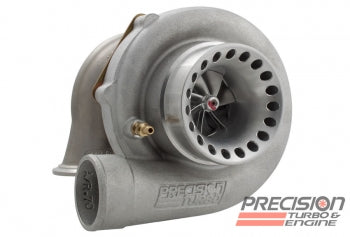

GEN2 PT6062 CEA

HP RATING: 750

Featuring the latest and greatest in compressor and turbine wheel technology from Precision, the PT6062 GEN2 CEA® offers a unique combination of Competition Engineered Aerodynamics (CEA®) with both hot and cold sides! Offering substantially more horsepower over similarly sized turbos, the PT6062 GEN2 CEA® is the perfect choice for those wanting to make more power without changing their current system.

Ball Bearing ONLY

PTE’s PT6062 Turbocharger features the following:
� Exclusive GEN2 CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging
� Higher efficiency and faster transient response for maximum power and performance
� 60mm inducer compressor wheel
� Compressor cover options:
– “Ported S” compressor cover 4.0″ inlet/2.5″ outlet
� Exclusive CEA® (Competition Engineered Aerodynamics) 62mm turbine wheel
� Turbine housing options:
� � T3 .63 or .82 A/R with 4 bolt (2.5″) discharge
� � T3 .63 or .82 A/R with 3″ OD (outer diameter) V-Band discharge
� � T3 .63 A/R with 5 bolt discharge (with or without wastegate hole)
� � T4 Divided .84 A/R with 3 5/8″ OD (outer diameter) V-Band discharge
� � T4 Tangential .58 or .68 A/R with 3 5/8″ OD (outer diameter) V-Band discharge
� � V-Band inlet/outlet .64 or .82 A/R
� � Mitsubishi .63 A/R
� � Buick .63 A/R
� � K26 .82 A/R
� � GMC Syclone/Typhoon .85 A/R
� * NOTE: Additional cost may apply for certain housings.
� Comes standard with an air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)

Precision customers have a history of setting records and getting noticed. They don’t sit in the stands watching the action � they’re the ones making it happen. Innovation is a collaborative process and we focus our efforts on you. Get involved and be a part of the action today with PTE.
